Stahlträger und Profile
Stahlträger

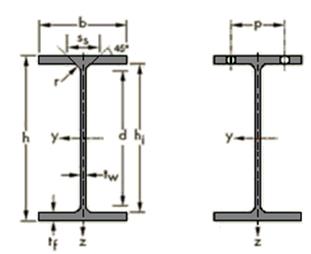

Doppel-T-Träger IPB-Reihe
- Breitflanschträger Typ HEB
- Breitflanschträger leicht Typ HEA
- Breitflanschträger verstärkt Typ HEM
Doppel-T-Träger
- IPE-Reihe
Profile
T-Profile
U-Profile
Auflistung der Handelsgewichte von Stahlträgern und U-Profilen
| Abmessungen h |
HEA Leichte Reihe DIN EN 1025-3 kg/m |
HEB Normale Reihe DIN EN 1025-2 kg/m |
HEM Verstärkte Reihe DIN EN 1025-4 kg/m |
IPE DIN EN 1025-5 kg/m |
UNP DIN EN 1026 kg/m |
|---|---|---|---|---|---|
| 80 | - | - | - | 6,2 | 8,9 |
| 100 | 17,1 | 20,9 | 42,8 | 8,3 | 10,9 |
| 120 | 20,4 | 27,4 | 53,4 | 10,7 | 13,7 |
| 140 | 25,3 | 34,5 | 64,8 | 13,2 | 16,4 |
| 160 | 31,2 | 43,7 | 78,1 | 16,2 | 19,3 |
| 180 | 36,4 | 52,5 | 91,1 | 19,3 | 22,5 |
| 200 | 43,0 | 63,0 | 106,0 | 23,0 | 26,0 |
| 220 | 52,0 | 73,0 | 120,0 | 26,9 | 30,0 |
| 240 | 62,0 | 85,0 | 161,0 | 31,5 | 34,0 |
| 260 | 70,0 | 95,0 | 176,0 | 37,0 | 39,0 |
| 280 | 78,0 | 106,0 | 194,0 | 43,3 | 43,0 |
| 300 | 90,0 | 120,0 | 244,0 | 50,4 | 48,0 |
| 320 | 100,0 | 100,0 | 251,0 | 58,6 | 61,0 |
| 340 | 108,0 | 108,0 | 254,0 | 68,0 | 62,0 |
| 360 | 115,0 | 115,0 | 256,0 | 80,0 | 65,0 |
| 400 | 128,0 | 128,0 | 262,0 | 93,0 | 74,0 |
| 450 | 143,0 | 143,0 | 270,0 | 109,0 | - |
| 500 | 159,0 | 159,0 | 277,0 | 125,0 | - |
| 550 | 170,0 | 170,0 | 285,0 | - | - |
| 600 | 182,0 | 182,0 | 292,0 | - | - |
| 650 | 195,0 | 195,0 | 300,0 | - | - |
| 700 | 209,0 | 209,0 | 309,0 | - | - |
| 800 | 230,0 | 230,0 | 325,0 | - | - |
| 900 | 258,0 | 258,0 | 341,0 | - | - |
| 1000 | 279,0 | 279,0 | 358,0 | - | - |
